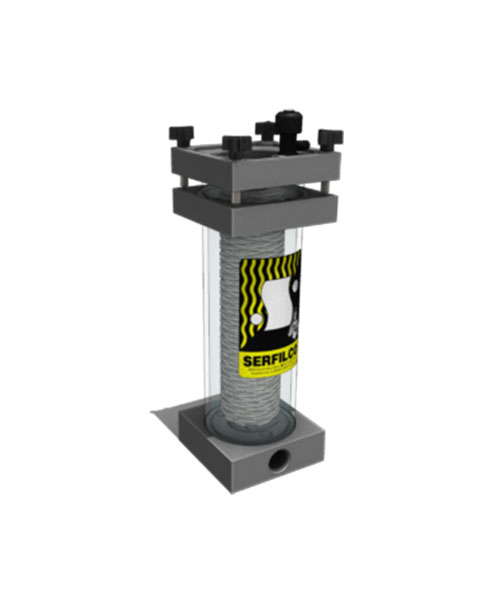

серия L
| Применение: | ЭЛЕКТРОПОЛИРОВКА / УГЛЕРОДНАЯ ВОДА / ОЧИСТКА ФОТОГРАФИЯ / ФАРМАЦЕВТИЧЕСКАЯ ХИМИЯ / НЕФТЕХИМИЯ / НАПИТКИ |
| Материал: | CPVC, PVC, PP, PVDF |
| Пропускная способность: | 1-40 gpm |
| Преимущества: |
|
Скорость потока до 34 gpm в зависимости от типа и длины фильтрующего картриджа, содержания твердых частиц, вязкости, перепада давления, размера соединения и желаемой степени прозрачности. Номинальное давление фильтровальных камер зависит от температуры фильтруемых растворов.
ФУНКЦИИ
- Размеры порта 3/4 "и 1" NPT
- Уплотнительное кольцо на крышке и выпускном клапане
- Простое обслуживание, никаких инструментов не требуется
ПРЕИМУЩЕСТВА
- Для фильтрации и очистки технологических растворов. Использование с различными фильтрующими материалами (заказываются отдельно)
- Глубоко намотанные, гофрированные, угольные или мембранные картриджи
- Подходят стандартные картриджи с концевыми адаптерами - DOE (двойной открытый конец), а также SOE (одинарный открытый конец для уплотнительного кольца 222)
- Очищаемые рукава (используются с предварительным покрытием или без него)
| Артикул | Материал | Материал | Размер | Вход | Выход | Расход (макс.) | Давление (макс.) | Ёмкость | Ёмкость |
| 78-1271-AV | PVC | FKM | 40" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 1.3m2 | 14ft2 |
| 78-1271-ACV | PVC | EPDM | 40" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 1.3m2 | 14ft2 |
| 78-1270-AV | PVC | FKM | 30" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-1271-AC | PVC | EPDM | 40" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 1.3m2 | 14ft2 |
| 78-1270-ACV | PVC | FKM | 30" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-1270-AC2 | PVC | EPDM | 30" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-1270-AC | PVC CLEAR | EPDM | 30" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-1270-A2 | PVC | EPDM | 30" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-1269-AV | PVC | FKM | 20" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-1269-ACV | PVC | FKM | 20" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-1269-AC | PVC | EPDM | 20" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-1268-BV | PVC | FKM | 10" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-1268-BCV | PVC | FKM | 10" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-1268-AV | PVC | FKM | 10" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-1268-BC | PVC | EPDM | 10" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-1268-ACV | PVC | FKM | 10" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-1268-AC | PVC | EPDM | 10" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-1165-BV | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1165-V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1165-B2V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1165-B2 | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1165-B | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1165-2V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1164-V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1165-2 | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1164-BV | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1164-B2V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1164-B2 | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1164-B | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1164-2V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1163-V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1164-2 | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1163-BV | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1163-B2V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1163-B2 | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1163-B | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1163-2V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1163-2 | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1162-V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1162-BV | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1162-B | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1161-V | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1161-BV | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-1161-B | Unspecified | gpm | 160 psi | 0.33m2 | |||||
| 78-0469-VC | PVDF | FKM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0469-ACV | PVDF | FKM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0469-AV | PVDF | FKM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0469-AC | PVDF | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0469-A2V | PVDF | FKM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0469-A2 | PVDF | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0469-2 | PVDF | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0469-2V | PVDF | FKM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0468-VC | PVDF | FKM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0468-AV | PVDF | FKM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0468-ACV | PVDF | FKM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0468-AC | PVDF | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0468-A2 | PVDF | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0468-2V | PVDF | FKM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0467-AV | PVDF | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0468-2 | PVDF | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0467-ACV | PVDF | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0467-AC | PVDF | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0467-A2V | PVDF | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0467-A2 | PVDF | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0467-2V | PVDF | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0467-2 | PVDF | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0290-AV | PP | FKM | 40" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 14ft2 |
| 78-0290-AC | PP | EPDM | 40" | 3/4NPT | 3/4NPT | gpm | 100 psi | 0.33m2 | 14ft2 |
| 78-0290-ACV | PP | FKM | 40" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 14ft2 |
| 78-0290-A2V | PP | FKM | 40" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 14ft2 |
| 78-0290-A2 | PP | EPDM | 40" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 14ft2 |
| 78-0290-2V | PP | FKM | 40" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 14ft2 |
| 78-0289-C | PP | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0290-2 | PP | EPDM | 40" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 14ft2 |
| 78-0289-AV | PP | FKM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0289-ACV | PP | FKM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0289-AC | PP | EPDM | 30" | 3/4NPT | 3/4NPT | 24 gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0289-A2V | PP | FKM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0289-2V | PP | FKM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0289-A2 | PP | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0289-2 | PP | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0288-C | PP | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0288-AV | PP | FKM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0288-AC | PP | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0288-ACV | PP | FKM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0288-A2V | PP | FKM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0288-A2 | PP | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0288-2V | PP | FKM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0288-2 | PP | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0287-AV | PP | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0287-ACV | PP | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0287-AC2 | PP | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0287-AC | PP | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0287-A2 | PP | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0287-A2V | PP | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0287-2V | PP | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0282-B2V | PP | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0282-B2 | PP | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0282-B | PP | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0282-AV | PP | FKM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0282-A2V | PP | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0282-A2 | PP | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0282-A | PP | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0282-2 | PP | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0282-2V | PP | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0281-V | PP | FKM | 6" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0281-BV | PP | FKM | 6" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0281-B | PP | EPDM | 6" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0280-BV | PP | FKM | 4" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0280-B | PP | EPDM | 4" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0248-V | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0248-BV | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0248-B2V | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0248-B2 | CPVC | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0248-B | CPVC | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0248-A2V | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0248-AV | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0248-A2 | CPVC | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0248-2V | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0248-2 | CPVC | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0247-V | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0247-B2V | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0247-BV | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0247-B2 | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0247-B | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0247-A2V | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0247-AV | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0247-A2 | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0247-2V | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0247-2 | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0246-V | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0246-BV | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0246-B2V | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0246-B2 | CPVC | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0246-B | CPVC | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0246-AV | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0246-A2V | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0246-2V | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0246-2 | CPVC | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0245-V | CPVC | FKM | 6" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0245-BV | CPVC | FKM | 6" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0245-B | CPVC | EPDM | 6" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0244-V | CPVC | FKM | 4" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0244-BV | CPVC | FKM | 4" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0244-B | CPVC | EPDM | 4" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0243-AV | CPVC | FKM | 40" | 3/4NPT | 3/4NPT | 160 psi | 1.3m2 | 14ft2 | |
| 78-0243-ACV | CPVC | FKM | 40" | 3/4NPT | 3/4NPT | 160 psi | 1.3m2 | 14ft2 | |
| 78-0243-A2V | CPVC | FKM | 40" | 3/4NPT | 3/4NPT | 160 psi | 1.3m2 | 14ft2 | |
| 78-0243-A2 | CPVC | EPDM | 40" | 3/4NPT | 3/4NPT | 160 psi | 1.3m2 | 14ft2 | |
| 78-0243-2V | CPVC | FKM | 40" | 3/4NPT | 3/4NPT | 160 psi | 1.3m2 | 14ft2 | |
| 78-0242-AV | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0243-2 | CPVC | EPDM | 40" | 3/4NPT | 3/4NPT | 160 psi | 1.3m2 | 14ft2 | |
| 78-0242-ACV | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0242-A2V | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0242-A2 | CPVC | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0242-2V | CPVC | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0242-2 | CPVC | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0241-AV | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0241-ACV | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0241-AC2 | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0241-A2V | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0241-A2 | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0241-2 | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0241-2V | CPVC | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0240-AV | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0240-ACV | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0240-AC2 | CPVC | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0240-A2V | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0240-A2 | CPVC | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0240-2V | CPVC | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0240-2 | CPVC | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0287-2 | PP | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0284-V | PP | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0284-BV | PP | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0284-B2 | PP | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0284-B2V | PP | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0284-B | PP | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0284-AV | PP | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0284-A2 | PP | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0284-A2V | PP | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0284-2V | PP | FKM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0284-2 | PP | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0283-BV | PP | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0283-V | PP | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0283-B2V | PP | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0283-B2 | PP | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0283-A2V | PP | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0283-B | PP | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0283-A2 | PP | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0283-2V | PP | FKM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0283-2 | PP | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0282-V | PP | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0282-BV | PP | FKM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-0243-AC | CPVC | EPDM | 40" | 3/4NPT | 3/4NPT | 160 psi | 1.3m2 | 14ft2 | |
| 78-0241-AC | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-0242-AC | CPVC | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-0240-AC | CPVC | EPDM | 10" | 3/4NPT | 3/4NPT | 160 psi | 0.33m2 | 3.5ft2 | |
| 78-1271-A | PVC | EPDM | 40" | 3/4NPT | 3/4NPT | 160 psi | 1.3m2 | 14ft2 | |
| 78-1270-A | PVC | EPDM | 30" | 3/4NPT | 3/4NPT | 160 psi | 0.98m2 | 10.5ft2 | |
| 78-1269-A | PVC | EPDM | 20" | 3/4NPT | 3/4NPT | 160 psi | 0.65m2 | 7ft2 | |
| 78-1268-B | PVC | EPDM | 10" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-1268-A | PVC | EPDM | 10" | 3/4NPT | 3/4NPT | 34 gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0287-A | PP | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0284-A | PP | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0806 | Unspecified | gpm | |||||||
| 78-0469-A | PVDF | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0468-A | PVDF | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0467-A | PVDF | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0290-A | PP | EPDM | 40" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 14ft2 |
| 78-0289-A | PP | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0248-A | CPVC | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0247-A | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0246-A | CPVC | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0245-A | CPVC | EPDM | 6" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0243-A | CPVC | EPDM | 40" | 3/4NPT | 3/4NPT | gpm | 160 psi | 1.3m2 | 14ft2 |
| 78-0242-A | CPVC | EPDM | 30" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.98m2 | 10.5ft2 |
| 78-0241-A | CPVC | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
| 78-0240-A | CPVC | EPDM | 10" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.33m2 | 3.5ft2 |
| 78-0288-A | PP | EPDM | 20" | 3/4NPT | 3/4NPT | gpm | 160 psi | 0.65m2 | 7ft2 |
