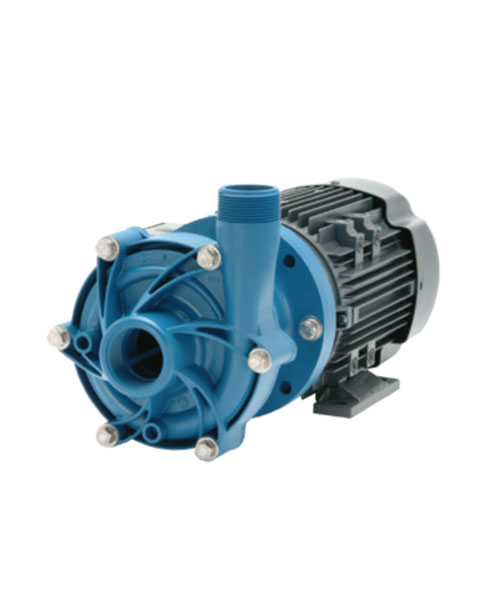

Насос серии серия 'ME6' 'ME8' 'ME10'

серия 'ME6' 'ME8' 'ME10'

Применение: КИСЛОТА / КАУСТИК / ХИМИЧЕСКАЯ ФОТОГРАФИЯ / ПОКРЫТИЕ / АНОДИРОВАНИЕ / ВОДА / СТОЧНЫЕ ВОДЫ
Материал: PP, PVDF
Пропускная способность: 0.5-95 gpm
Преимущества:
  • Расход до 95 галлонов в минуту или 54 футов в минуту при 60 Гц
  • Контакт с неметаллическим раствором
  • РР, армированный стекловолокном, PVDF, армированный углеродом
  • Высокая эффективность работы до 70%

Насосы серий «ME6», «ME8» и «ME10» с магнитной муфтой обеспечивают чрезвычайно высокий КПД для своего размера, что приводит к меньшей мощности двигателя, меньшему потреблению энергии и эксплуатационным расходам в течение длительного срока службы насоса. В этих насосах используются мощные редкоземельные неодимовые магниты, которые позволяют им работать с полным потоком при перекачивании жидкостей с удельным весом более 1,8. Кроме того, вся серия "ME" может работать всухую без повреждений при использовании стандартной угольной втулки. Это помогает защитить насос от ошибок оператора и сбоев в работе системы.

ФУНКЦИИ

  • Возможность работы всухую без повреждений
  • Мощные редкоземельные магниты
  • Выбор соединений: резьба NPT или BSP, фланцы или штуцеры.
  • Принимает стандартные двигатели NEMA или IEC с метрикой.
Артикул Материал Материал Вход Выход Расход (макс.) Давление (макс.) Мощность Об\мин Электрич. данные Фаза Тип уплот. Втулка
51-3042-P PP FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 1 hp 3450 208-230/460V 60Hz 3 Magnet coupled Carbon / Alumina
51-2622-D1 PP EPDM 1NPT 1NPT 40 gpm 62.29 ft 0.75 hp 3450 115-230V/1/60 1 Magnet coupled Carbon / Alumina
51-2932-T-WE PVDF FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft     w/o Motor   Magnet coupled PTFE / Alumina
51-2932-DT PVDF FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.75 hp 3450 115-230V 60Hz 1 Magnet coupled PTFE / Alumina
51-2722-L3TF PVDF KALREZ 1NPT 1NPT 40 gpm 53.06 ft 0.75 hp 3450 230/460/3/60 3 Magnet coupled PTFE / Alumina
51-2712-DS PVDF FKM 1NPT 1NPT 31 gpm 36.91 ft 0.75 hp 3450 115-230V/1/60 1 Magnet coupled Carbon / Alumina
51-2831-CXN PP FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.5 hp 3450 EXP: 3450/1/60/115-2 1 Magnet coupled Carbon / Alumina
51-2722 PVDF FKM 1NPT 1NPT 40 gpm 53.06 ft     w/o Motor   Magnet coupled Carbon / Alumina
51-2622-LF PP FKM 1 Flange 1 Flange 31 gpm 36.91 ft 0.75 hp 3450 208-230-460V/3/60 3 Magnet coupled Carbon / Alumina
51-2622 PP FKM 1NPT 1NPT 40 gpm 53.06 ft     w/o Motor   Magnet coupled Carbon / Alumina
51-2611-C1 PP EPDM 1NPT 1NPT 31 gpm 36.91 ft 0.5 hp 3450 115-230V/1/60 1 Magnet coupled Carbon / Alumina
51-2832-LR PP FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.75 hp 3450 3450/3/60/208-230-46 3 Magnet coupled Carbon / Alumina
51-2664-CB PP FKM 1NPT 1NPT 35 gpm 36.91 ft 0.5 hp 2850 220-380V/3/50 3 Magnet coupled Carbon / Alumina
51-2611-K1R PP   1NPT 1NPT 31 gpm 36.91 ft 0.5 hp       Magnet coupled Carbon / Alumina
51-3153-QT PVDF FKM 1 1/2NPT 1 1/2NPT 95 gpm 50.75 ft 1.5 hp 3450 208-230-460/3/60 3 Magnet coupled PTFE / Alumina
51-3152 PVDF FKM 1 1/2NPT 1 1/2NPT 93 gpm 50.75 ft         Magnet coupled Carbon / Alumina
51-3142-PF PVDF FKM 1 1/2 Flange 1 1/2 Flange 85 gpm 41.53 ft 1 hp 3450 208-230-460V/3/60 3 Magnet coupled Carbon / Alumina
51-3042-P1F PP EPDM 1 1/2 Flange 1 1/2 Flange 94 gpm 41.53 ft 1 hp 3450 208-230/460V/3/60 3 Magnet coupled Carbon / Alumina
51-3042-E1 PP EPDM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 1 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2721-K PVDF FKM 1NPT 1NPT 40 gpm 50.75 ft 0.5 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2712-L PVDF FKM 1NPT 1NPT 31 gpm 36.91 ft 0.75 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2711-K PVDF FKM 1NPT 1NPT 31 gpm 36.91 ft 0.5 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2711-J PVDF FKM 1NPT 1NPT 31 gpm 36.91 ft 0.33 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2711-A PVDF FKM 1NPT 1NPT 31 gpm 36.91 ft 0.33 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-3052-P PP FKM 1 1/2NPT 1 1/2NPT 95 gpm 50.75 ft 1 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-3052-E PP FKM 1 1/2NPT 1 1/2NPT 95 gpm 50.75 ft 1 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2621-C PP FKM 1NPT 1NPT 37 gpm 36.91 ft 0.5 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2832-E PP FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 1 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2832-1 PP EPDM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.75 hp 3450 w/o Motor   Magnet coupled Carbon / Alumina
51-2622-L PP FKM 1NPT 1NPT 31 gpm 36.91 ft 0.75 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2611-J PP FKM 1NPT 1NPT 31 gpm 36.91 ft 0.33 hp 3450 208-230/460V/3/60   Magnet coupled Carbon / Alumina
51-3042-D PP FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 0.75 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-3042-1 PP EPDM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 0.75 hp 3450 w/o Motor   Magnet coupled Carbon / Alumina
51-3143-Q PVDF FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 1.5 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-3142-L PVDF FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 0.75 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2931-C PVDF FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.5 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2612-L PP FKM 1NPT 1NPT 31 gpm 36.91 ft 0.75 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2612-D PP FKM 1NPT 1NPT 31 gpm 36.91 ft 0.75 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2832-P PP FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 1 hp 3450 208-230-460V/3/60 3 Magnet coupled Carbon / Alumina
51-2611-A PP FKM 1NPT 1NPT 31 gpm 36.91 ft 0.33 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-3042-L PP FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 0.75 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-3042-E PP FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 1 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-3142-P PVDF FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 1 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-3152-P PVDF FKM 1 1/2NPT 1 1/2NPT 95 gpm 50.75 ft 1 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-3142-D PVDF FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 0.75 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-3152-E PVDF FKM 1 1/2NPT 1 1/2NPT 95 gpm 50.75 ft 1 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-3053 PP FKM 1 1/2NPT 1 1/2NPT 95 gpm 50.75 ft 1.5 hp 3450 w/o Motor   Magnet coupled Carbon / Alumina
51-3153-V PVDF FKM 1 1/2NPT 1 1/2NPT 95 gpm 50.75 ft 2 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-3053-V PP FKM 1 1/2NPT 1 1/2NPT 95 gpm 50.75 ft 2 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-3053-1 PP EPDM 1 1/2NPT 1 1/2NPT 95 gpm 59.98 ft 1.5 hp 3450 w/o Motor   Magnet coupled Carbon / Alumina
51-2832-D PP FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.75 hp 3450 115-208-230/1/60 1 Magnet coupled Carbon / Alumina
51-2932-P PVDF FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 1 hp 3450 208-230-460V/3/60 3 Magnet coupled Carbon / Alumina
51-2932-L PVDF FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.75 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2932-E PVDF FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 1 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2932-D PVDF FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.75 hp 3450 115-230V 60Hz 1 Magnet coupled Carbon / Alumina
51-2931-K PVDF FKM 1 1/2NPT 1NPT 600 gpm 46.14 ft 0.5 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2721-C PVDF FKM 1NPT 1NPT 40 gpm 53.06 ft 0.5 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2721 PVDF FKM 1NPT 1NPT 31 gpm 36.91 ft 0.5 hp 3450 w/o Motor   Magnet coupled Carbon / Alumina
51-2712-D PVDF FKM 1NPT 1NPT 31 gpm 36.91 ft 0.75 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2711-C PVDF FKM 1NPT 1NPT 31 gpm 36.91 ft 0.5 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-3043-Q PP FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 1.5 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2831-K PP FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.5 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2831-C PP FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.5 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2621-K PP FKM 1NPT 1NPT 31 gpm 36.91 ft 0.5 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-3053-Q PP FKM 1 1/2NPT 1 1/2NPT 94 gpm 50.75 ft 1.5 hp 3450 208-230/460V 60Hz 3 Magnet coupled Carbon / Alumina
51-2832-L PP FKM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.75 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2611-K PP FKM 1NPT 1NPT 31 gpm 36.91 ft 0.5 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-3042 PP FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 0.75 hp 3450 w/o Motor   Magnet coupled Carbon / Alumina
51-3142-E PVDF FKM 1 1/2NPT 1 1/2NPT 85 gpm 41.53 ft 1 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-3153-Q PVDF FKM 1 1/2NPT 1 1/2NPT 95 gpm 50.75 ft 1.5 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2722-L PVDF FKM 1NPT 1NPT 40 gpm 50.75 ft 0.75 hp 3450 208-230-460V/3/60   Magnet coupled Carbon / Alumina
51-2722-D PVDF FKM 1NPT 1NPT 40 gpm 117.66 ft 0.75 hp 3450 115-230V/1/60 1 Magnet coupled Carbon / Alumina
51-2832-D1 PP EPDM 1 1/2NPT 1NPT 60 gpm 46.14 ft 0.75 hp 3450 115-230V/1/60 1 Magnet coupled Carbon / Alumina
51-2832 PP FKM 1 1/2NPT 1NPT 60 gpm 69.21 ft 0.75 hp 3450 w/o Motor   Magnet coupled Carbon / Alumina
51-2611-C PP FKM 1NPT 1NPT 31 gpm 36.91 ft 0.5 hp 3450 115-230V/1/60   Magnet coupled Carbon / Alumina
51-2622-D PP FKM 1NPT 1NPT 40 gpm 62.29 ft 0.75 hp 3450 115-230V/1/60 1 Magnet coupled Carbon / Alumina
51-3042-P1 PP EPDM 1 1/2NPT 1 1/2NPT 94 gpm 41.53 ft 1 hp 3450 208-230/460V/3/60   Magnet coupled Carbon / Alumina
51-3053-Q1 PP EPDM 1 1/2NPT 1 1/2NPT 94 gpm 50.75 ft 1.5 hp 3450 208-230-460V/3/60 3 Magnet coupled Carbon / Alumina
51-2611-K1 PP EPDM 1NPT 1NPT 31 gpm 36.91 ft 0.5 hp 3450 208-230-460V/3/60 3 Magnet coupled Carbon / Alumina
51-2832-1P PP EPDM 1 1/2NPT 1NPT 60 gpm 46.14 ft 1 hp 3450 208-230-460V/3/60 3 Magnet coupled Carbon / Alumina
