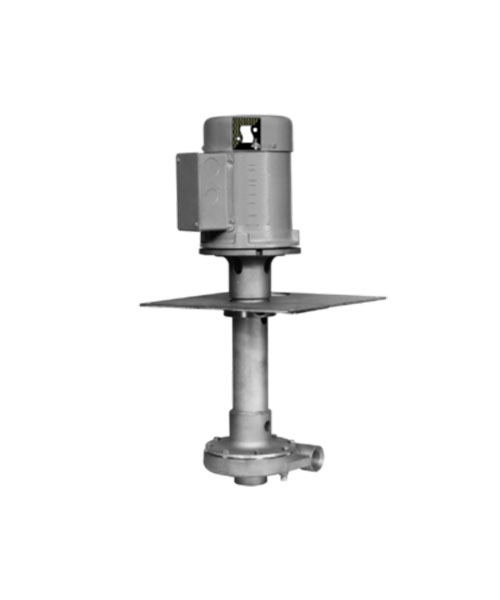

Вертикальный насос серии ECI

серия ECI

Материал: Cast iron
Пропускная способность: 15-150 gpm
Преимущества:
  • Расход до 180 галлонов США в минуту или 90 футов TDH при 60 Гц
  • Доступны колонки длиной 13, 20, 32 и 44 дюйма.
  • Доступен в двух размерах - 1 1/4 "x 1" и 2 "x 1 1/2" NPT.
  • Двигатели стандартные NEMA 'C' лицом (0,75 - 5,0 л.с.)
  • Центробежный - тихий, без вибрации
  • Пароизоляция вала защищает подшипники двигателя и атмосферу

Вертикальные насосы серий «ECI» и «ESS» отличаются высокоэффективным полуоткрытым рабочим колесом, литой конструкцией, обеспечивающей превосходную прочность и коррозионную стойкость, и консольным валом из нержавеющей стали 316, который направляется графитовой втулкой или втулкой Rulon. Такая же конструкция втулки и уникальный узел колонны позволяют надежно работать с колоннами до 44 дюймов.

Втулка смазывается перекачиваемым продуктом, поэтому внешняя промывочная жидкость не требуется. Однако, поскольку втулка промывается продуктом, эти насосы необходимо использовать внутри резервуара. В дополнительной монтажной плите для тяжелых условий эксплуатации используется зажимное приспособление, которое позволяет размещать ее в любом месте по длине колонны насоса. Дополнительная выпускная труба затем проходит через монтажную пластину для легкой установки.

Насосы изготовлены из нержавеющей стали SS 316 для максимальной коррозионной стойкости. Прокладка - синтетическое волокно с чугунным покрытием, PTFE с нержавеющей сталью 316 SS, пароуплотнение вала - FKM. Вал доступен в четырех вариантах длины до 44 дюймов. Втулка вала из графита или рулона обеспечивает работу без вибрации и расположена непосредственно над полузамкнутым высокоэффективным рабочим колесом, поэтому ее можно промыть промыванием продукта. Дополнительная монтажная пластина может быть зажата и затянута в любом месте заданная точка на колонне насоса, которая позволяет установить насос на желаемую глубину. Двигатели: 3450 об / мин при 60 Гц или 2850 при 50 Гц, TEFC или EXP, окрашенные двухкомпонентной эпоксидной краской. Однофазные двигатели TEFC включают 8 фут. (2,4 м) сетевой шнур.

Артикул Материал Материал Вход Выход Расход (макс.) Давление (макс.) Мощность Об\мин Электрич. данные Тип уплот. Втулка
61-2033 IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 w/o Motor Seal-Less Carbon / Alumina
62-8015 IRON CAST       gpm
62-8044-J IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-8044-H IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 3 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-8043-J IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 5 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-8043-H IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 3 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-8034-J IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-8034-H IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 3 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-8033-J IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 5 hp 3450 208-230-460V 60//50H Seal-Less Carbon / Alumina
62-8033-H IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 3 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-8024-J IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-7044-G IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-7043-G IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-7034-G IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-7033-G IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-7023 IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 3 hp 3450 w/o Motor Seal-Less Carbon / Alumina
62-7024-G IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-7015-H IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 3 hp 3450 208-230-460/3/60//38 Seal-Less
62-7015 IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 3 hp 3450 w/o Motor Seal-Less
62-6044-G IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-6044-F IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-6043-G IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-6043-F IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-6034-F IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-6034-C IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
62-6033-F IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-6033-C IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Carbon / Alumina
62-6024-GX IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-6024-G IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-6024-F IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-6015-C IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less
62-5034-F IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-5034-C IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
62-5033-F IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-5033-C IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Carbon / Alumina
62-8024-H IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 3 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-8024-G IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-8023-J IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 5 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-8023 IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 5 hp 3450 208-230-460V 60//50H Seal-Less Carbon / Alumina
62-8023-G IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-8015-J IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 5 hp 3450 208-230-460/3/60//38 Seal-Less
62-5024-F IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-5024-C IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
62-5023-C IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Carbon / Alumina
61-4024-F IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 1.5 hp   208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-4023-F IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 1.5 hp   208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-4015-H IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 3 hp   208-230-460/3/60//38 Seal-Less
61-4015-F IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 1.5 hp   208-230-460/3/60//38 Seal-Less
61-3044-G IRON CAST PTFE 1 1/4NPT 1NPT 75 gpm 76.13 ft 2 hp   208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-3043-G IRON CAST PTFE 1 1/4NPT 1NPT 75 gpm 76.13 ft 2 hp   208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-3034-G IRON CAST PTFE 1 1/4NPT 1NPT 75 gpm 76.13 ft 2 hp   208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-3033-G IRON CAST PTFE 1 1/4NPT 1NPT 75 gpm 76.13 ft 2 hp   208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-3024-G IRON CAST PTFE 1 1/4NPT 1NPT 75 gpm 76.13 ft 2 hp   208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-3015-E IRON CAST PTFE 1 1/4NPT 1NPT 75 gpm 76.13 ft 1 hp   208-230-460/3/60//38 Seal-Less
61-2034-F IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-2034-C IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
61-2033-F IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 208-230/460V 60Hz Seal-Less Carbon / Alumina
61-2033-C IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 115-230V 60Hz Seal-Less Carbon / Alumina
61-2024-F IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-2024-E IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-2024-D IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 0.75 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-2023-E IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-2024-C IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
61-2023-D IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 0.75 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-2023-C IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Carbon / Alumina
61-2015-C IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less
61-2015 IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 w/o Motor Seal-Less
61-1044-E IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-1044-B IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
61-1043-E IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-1043-B IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 115-208-230/1/60//22 Seal-Less Carbon / Alumina
61-1034-B IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
61-1034-E IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-1033-E IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-1033-B IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 115-208-230/1/60//22 Seal-Less Carbon / Alumina
62-5044-F IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
62-5044-C IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
62-5043-F IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 208-230/460V 60Hz Seal-Less Carbon / Alumina
62-5043-C IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Carbon / Alumina
62-5043 IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 w/o Motor Seal-Less Carbon / Alumina
61-4044-G IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 2 hp   208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-4043-G Unspecified       gpm
61-4034-G IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 2 hp   208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-4033-G IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 2 hp   208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-4024-G IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 2 hp   208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-1024-E IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-1024-D IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 0.75 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-1024-B IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
61-1023-D IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 0.75 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-1023-B IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 115-208-230/1/60//22 Seal-Less Carbon / Alumina
61-1023 IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 w/o Motor Seal-Less Carbon / Alumina
61-1015-D IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 0.75 hp 3450 208-230-460/3/60//38 Seal-Less
61-1015-EX IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 208-230-460/3/60//38 Seal-Less
61-1015-B IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 115-208-230/1/60//22 Seal-Less
61-1015-A IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 0.75 hp 3450 115-208-230/1/60//22 Seal-Less
61-1015 IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 w/o Motor Seal-Less
62-5015-C IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less
61-2044-F IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Rulon / Alumina
61-2044-C IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Rulon / Alumina
61-2043-F IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-2043-C IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 115-208-230/1/60//22 Seal-Less Carbon / Alumina
62-8023-H IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 3 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-8015-H IRON CAST FKM 2NPT 1 1/2NPT 170 gpm 80.75 ft 3 hp 3450 208-230/460V 60Hz Seal-Less
62-7023-G IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-7015-G IRON CAST FKM 2NPT 1 1/2NPT 145 gpm 80.75 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less
62-6023-F IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-6015-F IRON CAST FKM 2NPT 1 1/2NPT 130 gpm 53.06 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less
62-5023-F IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
62-5015-F IRON CAST FKM 2NPT 1 1/2NPT 120 gpm 41.53 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less
61-4015-G IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less
61-4023-G IRON CAST PTFE 1 1/4NPT 1NPT 85 gpm 96.89 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-3023-G IRON CAST PTFE 1 1/4NPT 1NPT 75 gpm 76.13 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-3015-G IRON CAST PTFE 1 1/4NPT 1NPT 75 gpm 76.13 ft 2 hp 3450 208-230-460/3/60//38 Seal-Less
61-2023-F IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-2015-F IRON CAST PTFE 1 1/4NPT 1NPT 70 gpm 59.98 ft 1.5 hp 3450 208-230/460V 60Hz Seal-Less
61-1023-E IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 208-230-460/3/60//38 Seal-Less Carbon / Alumina
61-1015-E IRON CAST PTFE 1 1/4NPT 1NPT 65 gpm 46.14 ft 1 hp 3450 208-230/460V 60Hz Seal-Less
61-3015 SS 316       gpm       w/o Motor
61-3015-F SS 316   1 1/4NPT 1 1/4NPT gpm   1.5 hp 3450   Seal-Less
