Система фильтрации Space-Saver SM

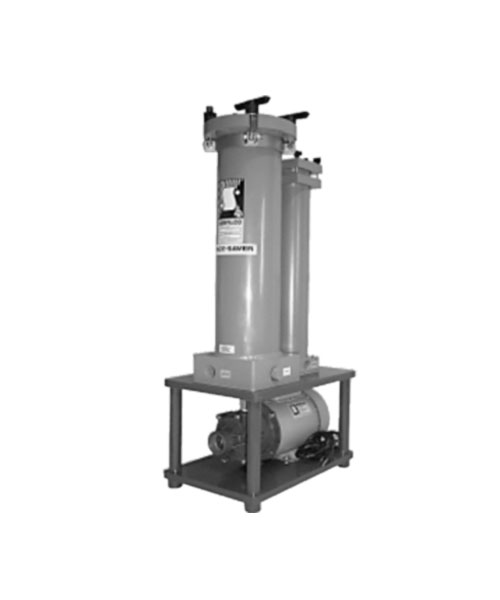

Space-Saver SM

Серия SERFILCO Space-Saver 'SM' разработана для обеспечения надежной и высокопроизводительной фильтрации в небольшом корпусе.

Применение: ОБРАБОТКА ПЕЧАТНЫХ ПЛАТ / ЭЛЕКТРОПЛИРОВКА / ОЧИСТИТЕЛИ / ОПОЛАСКИВАНИЯ
Материал: CPVC, PP, PVDF
Пропускная способность: 1700 - 3200 gph
Преимущества:

  • КОМПАКТНАЯ, ВОЗМОЖНОСТЬ СУХОГО ЗАПУСКА ФИЛЬТРАЦИИ С ВЫСОКИМ ПОТОКОМ

Серия SERFILCO Space-Saver 'SM' разработана для обеспечения надежной и высокопроизводительной фильтрации в небольшом корпусе.

Эти системы включают в себя насос с магнитной муфтой увеличенного сухого хода серии «M» и проверенную промышленностью прочную конструкцию фильтровальной камеры серии «S».

В комплект поставки системы входит коррозионно-стойкое монтажное основание с капюшоном из PVC, которое защищает насос и двигатель и поддерживает камеру фильтра на удобной высоте для замены картриджа.

Системы доступны из CPVC, PVC или полипропилена с насосом из полипропилена или из PVDF с насосом из PVDF. Эластомеры EPDM являются стандартными. Внешняя фурнитура - нержавеющая сталь.

ФУНКЦИИ

  • Насосы серии «M» с магнитной муфтой, которые могут работать всухую без повреждений!
  • Коррозионно-стойкое монтажное основание из PVC с капюшоном
  • Фильтровальная камера серии S с манометром 0-60 PSI
  • Стандарт эластомеров EPDM
  • Вход в фильтрующую камеру снизу для низкого перепада давления
  • Внешний крепеж из нержавеющей стали и выпускной клапан из полипропилена или выпускная заглушка из PVDF
  • Жесткие трубопроводы и влажные испытания перед отгрузкой
Артикул Описание Материал Материал Размер Вход Выход Расход (макс.) Давление (макс.) Мощность Корпус Ёмкость Ёмкость Об\мин Электрич. Данные Фаза Насос Тип уплот. Втулка
S-CJ18M208CV Canister Bypass CPVC FKM 30" 1 1/2NPT 3/4NPT 2700 GPH 24 psi 0.75 hp Carbon Purification Chambers 0.98m2 63ft2 3450 115/208-230V 60Hz 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-KSJ6M105V   PVDF FKM   1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 115/208-230V 60Hz 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Silicon Carbide
S-PPSHJ9M310   PP EPDM 30" 1 1/2NPT 1NPT 3180 GPH 25 psi 1 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 208-230/460/60 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSJ9M105V   PP FKM 30" 1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115-230/1/50-60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-KSJ9M208V   PVDF FKM 30" 1 1/2NPT 1NPT 3780 GPH 20 psi 0.75 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115/208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSHJ12M208   CPVC EPDM 40" 1 1/2NPT 1NPT 2700 GPH 19 psi 0.75 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 115/208-230V 60Hz 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSHJ12M310V   PP FKM 40" 1 1/2NPT 1NPT 3180 GPH 23 psi 1 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 208-230/460V 3PH 60H 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
88-3545-4 SPACESAVER 'SMES' PVC   12.5"x23.5"     GPH
S-CSJ9M105V   CPVC FKM 30" 1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115-230/1/50-60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSJ6M105V   PP FKM 20" 1NPT 1NPT 2040 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 115/230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSJ6M105   PP EPDM 20" 1NPT 1NPT 2040 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 115/230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSJ9M105   PP EPDM 30" 1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115-230/1/50-60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSHJ9M310   CPVC EPDM 30" 1 1/2NPT 1NPT 3180 GPH 25 psi 1 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 208-230/460/60 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSHJ6M310V   CPVC FKM 20" 1 1/2NPT 1NPT 4080 GPH 24 psi 1 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 208-230/460 3PH 60Hz 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSHJ9M208V   CPVC FKM 30" 1 1/2NPT 1NPT 3780 GPH 20 psi 0.75 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115/208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSJ12M105   PP EPDM 40" 1NPT 1NPT 1680 GPH 33 psi 0.5 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 115/208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSHJ6M208   PP EPDM 20" 1 1/2NPT 1NPT 3780 GPH 20 psi 0.75 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 115/230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSJ6M105   CPVC EPDM 20" 1NPT 1NPT 2040 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 115/208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSHJ9M208V   PP FKM 30" 1 1/2NPT 1NPT 3720 GPH 20 psi 0.75 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115/208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSHJ12M310   CPVC EPDM 40" 1 1/2NPT 1NPT 3180 GPH 23 psi 1 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 208-230-460/3/60//19 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSJ6M105V   CPVC FKM 20" 1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 115-208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-KSJ6M310V   PVDF FKM   1 1/2NPT 1NPT 3240 GPH 21 psi 1 hp Series 'S' Plastic Filter Chambers 0.33m2 21ft2 3450 208-230/460V 60Hz 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSJ9M105   CPVC EPDM 30" 1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115-230/1/50-60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSHJ6M208   CPVC EPDM 20" 1 1/2NPT 1NPT 3720 GPH 20 psi 0.75 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 115/208-230V 60Hz 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSJ12ME10410   CPVC EPDM   1 1/2NPT 1NPT 3300 GPH 19 psi 1 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 208-230/460/3/60 3 Series 'ME' Magnetic-coupled pump Magnet coupled Carbon / Alumina
S-CSHJ9M208   CPVC EPDM 30" 1 1/2NPT 1NPT 3780 GPH 20 psi 0.75 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115/208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSHJ6M310   CPVC EPDM 20" 1 1/2NPT 1 1/4NPT 4080 GPH 24 psi 1 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 208-230/460V/3/60//1 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSHJ9M208   PP EPDM 30" 1 1/2NPT 1NPT 2700 GPH 19 psi 0.75 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115/208-230/1/60 1 Series 'ME' Magnetic-coupled pump Magnet coupled Carbon / Alumina
S-KSJ9M310V   PVDF FKM 30" 1 1/2NPT 1NPT 3180 GPH 25 psi 1 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 208-230/460/60 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-KSJ9M310   PVDF EPDM 30" 1 1/2NPT 1NPT 3180 GPH 25 psi 1 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 208-230/460/60 3 Series 'BT' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSHJ6M310V   PP FKM 20" 1 1/2NPT 1NPT 4080 GPH 24 psi 1 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 208-230/460 3PH 60Hz 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-KSJ6M105   PVDF FKM   1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 115-230/1/50-60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-KSJ12M310   PVDF EPDM 40" 1 1/2NPT 1NPT 3180 GPH 24 psi 1 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 230-460/3/60 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-CSJ12M105V   Unspecified         GPH
S-PPSHJ12M310   PP EPDM   1 1/2NPT 1NPT 3180 GPH 24 psi 1 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 208-230/460V/3/60 3 Series 'M' Magnetic Coupled Pumps Magnet coupled
S-PPSJ12M105V   PP FKM 40" 1NPT 1NPT 1680 GPH 33 psi 0.5 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 115/208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-KSJ12M105   PVDF EPDM   1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 115/208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-PPSHJ6M310   PP EPDM   1 1/2NPT 1NPT 3000 GPH 24 psi 1 hp Series 'S' Plastic Filter Chambers 0.65m2 21ft2 3450 230-460/3/60 3 Series 'M' Magnetic Coupled Pumps Magnet coupled Alumina Ceramic
S-CSJ12M105   CPVC EPDM   1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 1.3m2 42ft2 3450 115/208-230/1/60 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
S-KSJ9M105V   PVDF FKM   1NPT 1NPT 1680 GPH 17 psi 0.5 hp Series 'S' Plastic Filter Chambers 0.98m2 31.5ft2 3450 115/208-230V 60Hz 1 Series 'M' Magnetic Coupled Pumps Magnet coupled Carbon / Alumina
